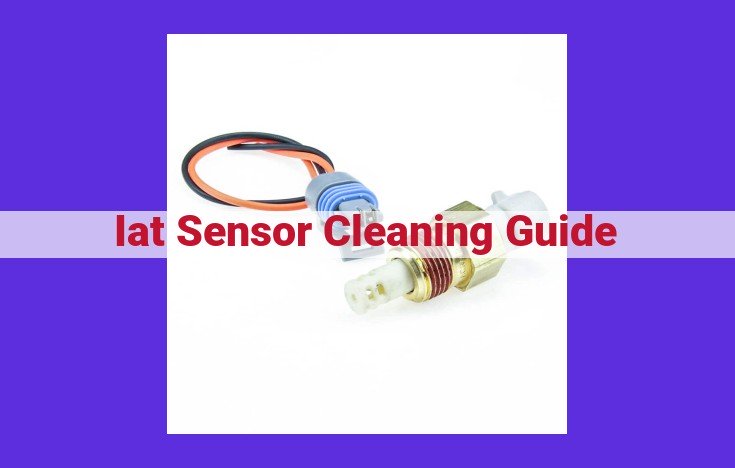

Definitive Iat Sensor Cleaning Guide: Improve Engine Performance And Fuel Economy

1. Intake Air Temperature (IAT) Sensor Cleaning Guide

This guide provides a comprehensive walkthrough of cleaning the IAT sensor, including its importance in engine management, related concepts such as intake air pressure and mass air flow, materials required, a detailed cleaning procedure, multimeter testing for resistance, proper reinstallation, clearing diagnostic codes, and emphasizing the benefits of regular IAT sensor maintenance for optimal engine performance and fuel efficiency.

• State the importance of the Intake Air Temperature (IAT) sensor in engine management.
• Explain the purpose of the IAT sensor, its role in measuring intake air temperature, and its impact on engine performance.

Intake Air Temperature (IAT) Sensor: A Vital Component for Optimized Engine Performance

In the intricate world of engine management, the Intake Air Temperature (IAT) sensor plays a crucial role in ensuring optimal performance and fuel efficiency. This unsung hero, often overlooked, has a significant impact on the overall health and longevity of your vehicle.

The IAT sensor is responsible for measuring the temperature of the air entering the engine through the intake manifold. This information is crucial for the engine’s computer, known as the Engine Control Unit (ECU), to accurately calculate the air-fuel mixture. The denser the air, the more fuel is required to achieve the desired air-fuel ratio for efficient combustion.

By monitoring the intake air temperature, the ECU can adjust the amount of fuel injected into the cylinders, ensuring that the engine operates at its peak efficiency. A clean IAT sensor is essential for accurate temperature readings, which directly affect the engine’s performance, fuel economy, and longevity.

IAT Sensor & Related Concepts: The Key to Engine Management

Understanding the Intake Air Temperature (IAT) Sensor

At the heart of modern engine management systems lies a critical sensor known as the IAT sensor. Its primary function is to accurately measure the temperature of the air entering the engine’s intake manifold, a vital parameter for optimal engine performance.

Related Concepts

The IAT sensor operates in conjunction with several other key components that influence engine behavior:

• Intake Air Pressure (IAP): A sensor measures the pressure of the incoming air, which is essential for calculating airflow and engine load.
• Mass Air Flow (MAF): This sensor measures the mass of air flowing into the engine, providing critical information for fuel injector timing and air-fuel ratio adjustment.
• Throttle Body: A valve that controls the amount of air entering the engine.
• Intake Manifold: A chamber that distributes the air-fuel mixture to each cylinder.

Interconnections and Dependencies

These components form an intricate web, influencing each other’s operation:

• The IAT sensor provides temperature data to the engine control unit (ECU), which adjusts the ignition timing, fuel injection, and other parameters accordingly.
• The IAP sensor helps calculate the air density, which is affected by temperature.
• The MAF sensor uses the IAT sensor’s temperature data to accurately measure airflow, as air density varies with temperature.
• The throttle body opening is adjusted based on the IAT, IAP, and MAF readings, optimizing airflow for different engine operating conditions.

By understanding these interconnections, you gain a deeper appreciation for the complex dance of engine management and the critical role of the IAT sensor.

Materials Required for Cleaning the Intake Air Temperature (IAT) Sensor

Maintaining a clean IAT sensor is crucial for optimal engine performance. Here’s a list of materials you’ll need to ensure a successful cleaning process:

• OBD2 Scanner: This device plugs into your vehicle’s diagnostic port and allows you to communicate with the engine control unit (ECU). It’s used to check for any stored diagnostic trouble codes related to the IAT sensor.

• Multimeter: A multimeter measures electrical resistance. It’s used to test the resistance of the IAT sensor, which can indicate its health.

• Cleaning Spray: Use a specifically formulated electrical contact cleaner. It helps remove dirt, grime, and contaminants from the sensor without damaging its delicate components.

• Microfiber Cloth: A clean microfiber cloth is soft and non-abrasive. It’s ideal for gently wiping away any loosened dirt or debris from the IAT sensor.

Maintain Peak Engine Performance: A Comprehensive Guide to Cleaning Your Intake Air Temperature Sensor

Your vehicle’s Intake Air Temperature (IAT) sensor plays a crucial role in maintaining optimum engine performance. This inconspicuous device measures the temperature of the air entering the engine, a vital parameter that influences fuel injection, ignition timing, and overall engine efficiency. When the IAT sensor becomes contaminated with dirt or debris, its accuracy can be compromised, leading to reduced fuel economy, increased emissions, and even engine damage. Regular cleaning of the IAT sensor is essential to keep it functioning optimally, and this comprehensive guide will walk you through the process step-by-step.

Materials Required

Before you begin, gather the following materials:

• OBD2 scanner
• Multimeter
• Electronic contact cleaner
• Microfiber cloth

Step-by-Step Cleaning Procedure

1. Locate the IAT Sensor: With the engine off, consult your vehicle’s service manual or use an online resource to identify the location of the IAT sensor. It is typically found in the intake manifold or air filter housing.

2. Disconnect Battery: For safety, disconnect the negative battery terminal to prevent any electrical hazards.

3. Disconnect IAT Sensor Connector: Use a small screwdriver to gently pry open the electrical connector attached to the IAT sensor. Pull the connector straight up to detach it from the sensor.

4. Remove IAT Sensor: Use a wrench or socket to loosen the mounting bolt holding the IAT sensor in place. Carefully remove the sensor from the intake manifold.

5. Clean IAT Sensor: Spray a small amount of electronic contact cleaner onto the exposed tip of the IAT sensor. Use a clean microfiber cloth to gently wipe away any dirt or debris. Avoid touching the sensor’s tip directly to prevent damage to its delicate components.

6. Inspect IAT Sensor: Inspect the sensor for any signs of damage or corrosion. If the sensor appears damaged, it may need to be replaced.

7. Reinstall IAT Sensor: Insert the cleaned IAT sensor back into the intake manifold and tighten the mounting bolt to the specified torque.

8. Reconnect IAT Sensor Connector: Align the electrical connector with the IAT sensor and push it straight down until it clicks into place.

9. Reconnect Battery: Reconnect the negative battery terminal.

Checking Sensor Resistance with a Multimeter

10. Set the multimeter to the resistance setting (typically marked with the Greek letter “Ω”).

11. Connect the multimeter leads to the two pins on the IAT sensor connector.

12. Compare the measured resistance with the values provided in your vehicle’s service manual. A significant deviation from the specified range may indicate a faulty sensor.

Reinstallation and Reconnection

13. Reinstall the IAT sensor into the intake manifold and tighten the mounting bolt to the correct torque.

14. Reconnect the electrical connector firmly.

Clearing Diagnostic Trouble Codes

15. Connect the OBD2 scanner to your vehicle’s diagnostic port.

16. Turn the ignition switch to the “ON” position (without starting the engine).

17. Follow the prompts on the OBD2 scanner to clear any stored diagnostic trouble codes related to the IAT sensor.

Regular cleaning of the IAT sensor is a simple and effective way to ensure optimum engine performance. By following the steps outlined in this guide, you can help your vehicle run smoother, more efficiently, and more environmentally friendly. Remember to perform this cleaning as part of your routine vehicle maintenance to keep your engine in top condition for years to come.

Checking Sensor Resistance with a Multimeter:

• Explain the role of a multimeter in testing IAT sensor resistance.
• Describe how to set up and use a multimeter to measure the resistance of the sensor.
• Provide guidelines for interpreting the resistance readings and comparing them to manufacturer specifications.

Checking Sensor Resistance with a Multimeter

Comprehending the Electrical Nature of IAT Sensors

To assess the functionality of your Intake Air Temperature (IAT) sensor, a multimeter, a tool that measures electrical properties, plays a crucial role. The IAT sensor, like other electronic components, exhibits a specific resistance value that varies with temperature. By measuring this resistance, we can determine the sensor’s integrity.

Setting Up and Utilizing the Multimeter

1. Configure the multimeter: Set the multimeter to the ohms (Ω) resistance measurement mode.
2. Identify the sensor terminals: Locate the two terminals on the IAT sensor, usually labeled as “Signal” and “Ground.”
3. Connect the multimeter: Touch one multimeter probe to the Signal terminal and the other probe to the Ground terminal.

Interpreting Resistance Readings and Manufacturer Specifications

The multimeter will display the resistance value in ohms. Compare this value to the manufacturer’s specifications provided in the vehicle’s service manual. If the resistance value falls within the specified range, the sensor is likely functioning correctly. However, significant deviations from the specified range may indicate a faulty sensor.

Pinpointing Potential Issues

• High resistance: Extremely high resistance readings may suggest a break or damage in the sensor’s wiring or terminals.
• Low resistance: Abnormally low resistance readings may indicate a short circuit or internal damage to the sensor.

By carefully measuring the IAT sensor’s resistance, you can gain valuable insights into its electrical health. Accurate resistance readings ensure the sensor is accurately reporting intake air temperature, contributing to optimal engine performance and fuel efficiency.

Reinstallation and Reconnection: The Final Step in IAT Sensor Cleaning

With the IAT sensor meticulously cleaned and ready to go, it’s time to put it back in its rightful place. Carefully insert the sensor back into its designated spot in the intake manifold or air filter housing. Make sure it fits snugly to prevent any air leaks.

Next, tighten the mounting bolt with the specified torque or force. This is crucial to ensure a secure connection and prevent the sensor from rattling or becoming loose. Refer to your vehicle’s service manual or consult an experienced mechanic for the appropriate torque value.

Finally, reconnect the electrical connector to the IAT sensor. Firmly press the connector until you hear a clicking sound, ensuring a tight fit. This connection is essential for accurate temperature readings and communication with the engine’s computer.

Congratulations! You’ve successfully cleaned and reinstalled the IAT sensor. Your engine can now breathe easier and perform at its peak.

Clearing Diagnostic Trouble Codes:

• Discuss the importance of clearing any stored diagnostic trouble codes related to the IAT sensor using an OBD2 scanner.
• Explain the process of connecting the scanner to the vehicle and clearing the codes.

Clearing Diagnostic Trouble Codes Related to the IAT Sensor

After cleaning and reinstalling the IAT sensor, it’s crucial to clear any diagnostic trouble codes (DTCs) stored in the vehicle’s computer. These codes can interfere with the proper operation of the engine and affect its performance.

To clear the DTCs, you’ll need an On-Board Diagnostics (OBD2) scanner. This device plugs into the vehicle’s diagnostic port and communicates with the computer, allowing you to access and manage fault codes.

Connect the OBD2 scanner to the port located under the dashboard, usually near the steering wheel. Turn on the ignition but do not start the engine. The scanner should power up and establish a connection with the vehicle’s computer.

Navigate through the scanner’s menu options to find the “Diagnostic Trouble Codes” or “DTCs” section. Select the option to “Clear Codes” or “Erase Codes”. The scanner will then send a command to the computer to delete all stored DTCs.

Once the codes have been cleared, turn off the ignition and disconnect the OBD2 scanner. Restart the engine and verify that the IAT sensor is now functioning correctly. If the cleaning process was successful, the engine should run smoothly and efficiently, without any stored fault codes related to the IAT sensor.
