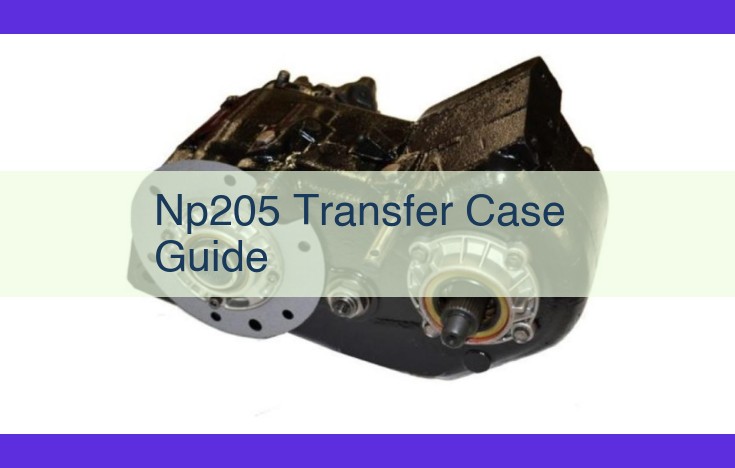

Comprehensive Guide To Np205 Transfer Case And 4X4 Systems: Operation, Troubleshooting, And Service

The NP205 transfer case guide provides comprehensive information on this crucial component in 4×4 vehicles. It covers transfer case ratios, shift modes, operation, troubleshooting, and maintenance. The guide also explores 4×4 and AWD systems, highlighting their benefits and limitations. Additionally, it discusses part-time and full-time 4WD, emphasizing proper usage guidelines. For hands-on service, the guide provides guidance on transfer case identification, removal, and installation, ensuring accurate maintenance and repairs.

• Define the NP205 transfer case and its purpose in 4×4 vehicles.
• Emphasize the importance of understanding its functions, maintenance, and troubleshooting for optimal performance and safety.

Understanding the **NP205 Transfer Case: A Comprehensive Guide for 4×4 Enthusiasts

In the realm of off-roading, the NP205 transfer case stands as a crucial component, empowering 4×4 vehicles with the versatility and ruggedness to conquer challenging terrain. It’s a gearbox that bridges the gap between the transmission and axles, orchestrating the distribution of power to the wheels.

Delving into Transfer Case Ratios

Transfer case ratios are paramount in determining the torque multiplication and speed reduction provided by the transfer case. In the NP205, three distinct ratios are found: 1.96:1, 2.61:1, and 1:1. These ratios enable the vehicle to tackle various terrains, from steep inclines to muddy tracks.

Navigating Transfer Case Shift Modes

The NP205 transfer case offers three distinct shift modes: 2WD, 4WD-High, and 4WD-Low. Each mode caters to specific driving conditions, ranging from everyday commuting to demanding off-road adventures. 2WD engages the rear wheels for optimal fuel efficiency, while 4WD-High activates all four wheels for improved traction on slippery surfaces. 4WD-Low provides maximum torque for overcoming steep obstacles and traversing challenging off-road terrains.

Unveiling Transfer Case Operation

The transfer case functions as a vital intermediary between the transmission and axles, seamlessly transmitting power to the wheels. Depending on the selected shift mode, the transfer case effectively alters the gear ratio, resulting in increased torque or speed reduction. Engaging and disengaging the transfer case requires precise techniques to ensure smooth gear transitions.

Troubleshooting Transfer Case Issues

As with any mechanical component, the transfer case may encounter occasional problems, such as grinding gears, shifting difficulties, or fluid leaks. Addressing these issues promptly is essential to maintain optimal functionality. Timely diagnosis and repairs will prevent further damage and ensure a trouble-free off-roading experience.

Importance of Transfer Case Maintenance

Regular maintenance is indispensable for the longevity of the NP205 transfer case. Periodic fluid changes, filter inspections, and torque checks are vital in safeguarding its components and extending its lifespan. Adhering to the manufacturer’s recommended maintenance intervals will keep your transfer case operating smoothly and avoid costly repairs down the road.

Exploring 4×4 Systems

The NP205 transfer case plays a pivotal role in 4×4 systems, enhancing vehicle traction and off-road capabilities. 4×4 systems employ a transfer case to distribute power to all four wheels, significantly improving grip and control on uneven terrain. Part-time and full-time 4×4 systems offer unique advantages and limitations, catering to specific driving needs.

Understanding AWD Systems

AWD (All-Wheel Drive) systems share similarities with 4×4 systems, providing improved traction in various driving conditions. However, AWD systems typically operate in a continuous mode, automatically adjusting power distribution to all four wheels based on driving conditions. This provides greater convenience and stability, particularly on slippery or wet surfaces.

Part-Time 4WD: A Closer Look

Part-time 4WD systems are typically found in light-duty and medium-duty trucks. They allow the driver to manually engage 4WD mode when needed, providing enhanced traction off-road while maintaining improved fuel efficiency during regular driving. Understanding the limitations and usage guidelines of part-time 4WD is crucial to avoid damage to the transfer case or drivetrain.

Full-Time 4WD: Continuous Traction

Full-time 4WD systems are designed for continuous operation, distributing power to all four wheels at all times. They are commonly found in heavy-duty trucks and off-road vehicles, providing unwavering traction and stability in challenging terrains. The transfer case in full-time 4WD systems is engineered to handle higher torque loads, ensuring durability and performance.

Unveiling the Secrets of Transfer Case Ratios: A Guide to NP205 Ratios

The NP205 transfer case is the backbone of many 4×4 vehicles, providing the versatility to conquer diverse terrains. Understanding its ratios is crucial for optimizing vehicle performance and ensuring safety.

Transfer case ratios determine the amount of torque multiplication applied to the wheels, enabling vehicles to navigate challenging conditions. The NP205 transfer case boasts three distinct ratios:

Low-Range Ratio (1.96:1):

This ratio dramatically increases torque, providing exceptional crawling power for traversing steep hills, rough terrain, and obstacles. It allows for precise control in situations where low speeds and high torque are essential.

High-Range Ratio (2.61:1):

For general off-roading, this ratio offers a balance between torque and speed. It provides sufficient torque for most off-road scenarios while maintaining reasonable highway performance.

Direct-Drive Ratio (1:1):

When engaged in 2WD mode, the NP205 transfer case bypasses the gear reduction, providing a direct connection between the transmission and the axles. This ratio maximizes fuel economy and on-road handling.

Knowing and appropriately selecting the correct transfer case ratio is paramount for a seamless 4×4 driving experience. By understanding these ratios, you empower yourself to tackle any terrain confidently, ensuring optimal performance and enhanced safety.

Transfer Case Shift Modes: Optimizing Your 4×4 Performance

When navigating rugged terrains and challenging driving conditions, understanding the shift modes of your vehicle’s transfer case is crucial for maximizing performance and safety. The NP205 transfer case, commonly found in 4×4 vehicles, offers three distinct shift modes: 2WD, 4WD-High, and 4WD-Low.

2WD: Unlocking Rear-Wheel Drive

In 2WD mode, the transfer case directs power exclusively to the rear wheels, providing optimal fuel efficiency and handling on smooth, paved roads. By disengaging the front wheels, this mode reduces drivetrain resistance and improves vehicle maneuverability.

4WD-High: Enhanced Traction for Off-Roading

Shifting into 4WD-High engages both the front and rear axles, distributing power evenly between them. This mode is ideal for off-roading and slippery conditions, where additional traction is needed to maintain control and overcome road obstacles. It allows you to navigate bumpy trails, sandy surfaces, and light snow without experiencing significant performance loss.

4WD-Low: Unmatched Power for Extreme Terrain

When faced with extreme off-road challenges, such as steep inclines, deep mud, or treacherous rock crawls, 4WD-Low amplifies torque and traction. The transfer case reduces the gear ratio, giving your vehicle a mechanical advantage to overcome formidable terrain. This mode provides exceptional climbing and crawling capabilities, allowing you to conquer even the most challenging off-road environments.

Proper Mode Selection: A Balancing Act

Choosing the appropriate shift mode depends on the driving conditions. 2WD is suitable for daily driving on paved roads, while 4WD-High enhances traction in slippery or off-road conditions. 4WD-Low is reserved for extreme terrain where maximum power and traction are essential.

It’s important to remember that engaging 4WD-Low on dry, paved surfaces can cause damage to the drivetrain. Always check your vehicle’s owner’s manual for specific instructions on when to use each mode to avoid potential issues.

Transfer Case Operation: The Heart of Your 4×4 Performance

Nestled between your transmission and axles, the transfer case is the unsung hero of your 4×4 vehicle. It acts as a gearbox, seamlessly bridging the transmission’s power to the axles, ensuring optimal traction and off-road capability.

With its intricate gears, the transfer case transforms the transmission’s power into the appropriate torque for the chosen shift mode. In 2WD (two-wheel drive), all the power is directed to the rear wheels for efficient fuel economy on paved roads.

When you engage 4WD-High (four-wheel drive high), the transfer case splits power evenly between the front and rear axles, providing enhanced traction on slippery or uneven surfaces. This mode is ideal for mild off-road adventures or navigating snowy or icy conditions.

For extreme off-road situations, 4WD-Low unleashes the beast within your vehicle. The transfer case reduces gear ratio, significantly increasing torque to the wheels. This provides the necessary crawling power to conquer steep inclines, negotiate rocky terrain, or pull heavy loads with ease.

Proper Engagement and Disengagement

Smooth gear transitions are crucial for the longevity of your transfer case. When shifting between modes, it’s essential to bring the vehicle to a complete stop to avoid grinding gears. Listen attentively to the transfer case, as it will provide audible feedback when fully engaged or disengaged. Sudden or forceful shifts can put undue stress on the gears and components.

**Transfer Case Troubleshooting: A Comprehensive Guide to Diagnosing and Repairing Common Problems**

Every off-road enthusiast understands the vital role a transfer case plays in distributing power to all wheels, maximizing traction and off-road capabilities. However, even the most rugged transfer cases can experience problems that need prompt attention to maintain optimal performance. In this detailed guide, we’ll delve into the intricacies of transfer case troubleshooting, empowering you with the knowledge and techniques to effectively diagnose and repair common issues.

Grinding Gears

• Cause: Worn or damaged gears, low fluid levels, or incorrect shift linkage adjustments
• Diagnosis: Grinding noises while shifting into or out of gear, difficulty shifting
• Solution: Inspect fluid levels, adjust shift linkage, replace worn gears

Shifting Difficulties

• Cause: Failed shift forks, worn synchronizers, or a faulty shift actuator
• Diagnosis: Inability to shift into or out of gear, grinding or binding during shifting
• Solution: Replace damaged shift components, verify electrical connections to the shift actuator

Fluid Leaks

• Cause: Worn or damaged seals, loose bolts, or faulty gaskets
• Diagnosis: Pooling of fluid underneath the vehicle, reduced fluid levels, slipping or shuddering during gear engagement
• Solution: Inspect for leaks, replace damaged seals or gaskets, tighten loose bolts

Our Approach to Troubleshooting

To effectively troubleshoot a transfer case, we employ a systematic approach that involves:

1. Checking fluid levels: Maintaining proper fluid levels ensures smooth operation and prevents overheating.
2. Inspecting for leaks: Identifying and repairing leaks promptly prevents fluid loss and potential damage.
3. Testing shift linkage: Correct shift linkage adjustment is crucial for effortless gear engagement and disengagement.
4. Diagnosing mechanical problems: By listening for grinding noises, assessing shift quality, and checking for leaks, we can pinpoint the root cause of the issue.
5. Repairing the transfer case: Once diagnosed, we employ the necessary repairs to restore optimal functionality, using genuine parts and following OEM specifications.

Understanding the intricacies of transfer case troubleshooting is essential for maintaining a reliable and off-road-capable vehicle. By addressing common problems promptly and effectively, you can ensure that your transfer case performs at its peak, enhancing your driving experience and enabling you to navigate even the most challenging terrains with confidence.

Essential Transfer Case Maintenance for Optimal Performance

The NP205 transfer case is a crucial component in 4×4 vehicles, enabling them to tackle diverse terrain with ease. To ensure its longevity and optimal performance, regular maintenance is essential. Here are some key maintenance tasks to keep your transfer case in tip-top shape:

Fluid Changes

Transfer case fluid is vital for lubricating gears, preventing wear and tear. Regular fluid changes are crucial to remove contaminants and maintain its protective properties. Refer to your vehicle’s owner’s manual for the recommended fluid type and change intervals.

Filter Inspections

The transfer case may be equipped with a filter to trap debris from the fluid. Periodically inspecting and replacing the filter prevents these particles from circulating and causing damage to the gears and bearings.

Torque Checks

Over time, bolts and fittings can loosen, leading to leaks or performance issues. Regularly checking and tightening all nuts, bolts, and clamps ensures a secure fit and prevents potential problems.

Recommended Maintenance Intervals

The frequency of maintenance will vary depending on the vehicle’s usage and conditions. However, it’s generally recommended to perform fluid changes and filter inspections every 30,000 to 50,000 miles. Torque checks can be done less frequently, but it’s advisable to inspect them whenever the vehicle is lifted for other maintenance work.

Neglecting transfer case maintenance can result in premature wear, fluid leaks, and even costly repairs. By following these simple maintenance steps, you can extend the life of your NP205 transfer case and ensure your 4×4 vehicle is always ready for adventure.

4×4 Systems: Enhancing Traction and Off-Road Prowess

4×4 systems are an essential upgrade for vehicles that demand superior traction and off-road performance. They harness the power of four-wheel drive to distribute the engine’s torque equally across all four wheels, resulting in enhanced grip and stability on challenging terrain.

Part-time 4×4 systems are a popular choice for drivers who primarily navigate paved roads but occasionally venture into off-road situations. They offer the versatility of switching between two-wheel drive (2WD) for everyday driving and four-wheel drive (4WD) for added traction when needed. However, part-time 4WD systems are not designed for continuous use on hard surfaces, as they can strain the drivetrain components.

Full-time 4WD systems, on the other hand, are designed to provide continuous traction in all driving conditions. They utilize a central differential to manage the power distribution and allow for smooth transitions between surfaces without the need to engage or disengage 4WD. Full-time 4WD systems are ideal for rugged terrains and inclement weather, where constant traction is crucial.

Understanding the Different Types of 4×4 Systems

• Part-time 4WD: Manual engagement; most suitable for occasional off-roading.
• Full-time 4WD: Continuous traction; ideal for off-road enthusiasts and extreme weather conditions.

Benefits of 4×4 Systems

• Enhanced traction: Improved grip on slippery, uneven, or off-road surfaces.
• Increased stability: Enhanced handling and control, especially on corners and inclines.
• Greater off-road capability: Ability to navigate challenging terrains, such as mud, sand, and snow.
• Improved safety: Increased stability and traction can enhance safety in adverse weather and off-road scenarios.

AWD Systems

• Describe the similarities and differences between AWD and 4×4 systems.
• Discuss the role of the transfer case in AWD systems and how it distributes power to all four wheels.
• Explain the benefits of AWD systems for improved traction and handling in various driving conditions.

All-Wheel Drive (AWD) Systems: Enhancing Traction and Handling

In the realm of off-roading and adventure, understanding the complexities of 4×4 and AWD systems can elevate your driving experience to new heights. AWD systems, akin to their 4×4 counterparts, are designed to enhance traction and handling in various driving conditions, but they do so with a distinct approach. Let’s dive into the intricacies of AWD systems and unravel their unique advantages.

Similarities and Differences between AWD and 4×4

At their core, AWD and 4×4 systems share the common goal of distributing power to all four wheels. However, they diverge in their design and functionality. 4×4 systems typically feature a transfer case that allows drivers to manually shift between two-wheel drive (2WD) and four-wheel drive (4WD) modes, depending on the terrain. In contrast, AWD systems operate automatically, constantly sending power to all four wheels without driver intervention.

Transfer Case in AWD Systems

The transfer case, a crucial component in both 4×4 and AWD systems, plays a pivotal role in distributing power to the wheels. In AWD systems, the transfer case is responsible for splitting the power evenly between the front and rear axles. This continuous distribution of power enhances traction, particularly on slippery or uneven surfaces.

Benefits of AWD Systems

AWD systems offer a multitude of benefits that contribute to a more controlled and enjoyable driving experience. Firstly, improved traction is central to the AWD system’s design. By sending power to all four wheels, AWD vehicles maintain stability and grip even on challenging surfaces such as wet roads, snow, and gravel.

Secondly, AWD systems enhance handling and cornering, particularly at higher speeds. The balanced distribution of power allows vehicles to navigate curves with greater precision and control, reducing the risk of skidding or losing traction.

Finally, AWD systems provide peace of mind in inclement weather conditions. Whether it’s a torrential downpour or a snowy blizzard, AWD vehicles offer the confidence and capability to tackle adverse road conditions with ease.

Part-Time 4WD: Unlocking Traction and Adventure

In the realm of off-road exploration, part-time 4WD systems shine as a beacon of versatility and capability. Understanding their operation and limitations is crucial for any adventure-seeker seeking to conquer challenging terrains.

Delving into Part-Time 4WD Systems

Part-time 4WD systems, as their name suggests, allow drivers to switch between two-wheel drive (2WD) and four-wheel drive (4WD) modes as needed. In 2WD mode, the vehicle operates similarly to a traditional rear- or front-wheel drive vehicle, while in 4WD mode, power is distributed evenly to all four wheels. This versatility enables drivers to seamlessly adapt to varying road conditions, from paved highways to rugged trails.

Understanding the Limitations

While part-time 4WD systems offer enhanced traction, it’s important to note their limitations. Unlike full-time 4WD systems, part-time systems should only be engaged on slippery surfaces, such as snow, ice, or loose gravel. Engaging 4WD on dry pavement can cause driveline binding and potentially damage the transfer case or drivetrain.

Guidelines for Safe Engagement and Disengagement

To maximize the benefits and minimize the risks of using a part-time 4WD system, follow these guidelines:

• Engage 4WD on slippery surfaces only.
• Bring the vehicle to a complete stop before shifting into 4WD.
• Shift smoothly and avoid rapid acceleration.
• Disengage 4WD once traction is no longer needed.
• Never engage 4WD on dry, hard surfaces.

By adhering to these guidelines, you can harness the full potential of your part-time 4WD system while ensuring the longevity of your vehicle.

Full-Time 4WD Systems: Continuous Traction for Enhanced Performance

Introduction

In the world of off-road adventures and challenging driving conditions, full-time 4WD systems shine as a beacon of stability and traction. Unlike part-time 4WD systems that require conscious engagement, full-time 4WD engages automatically, providing uninterrupted power distribution to all four wheels. This article delves into the intricacies of full-time 4WD systems, exploring their advantages, design considerations, and applications.

Advantages of Full-Time 4WD

Full-time 4WD systems offer several key advantages that make them ideal for diverse driving situations:

• Continuous Traction: The hallmark of full-time 4WD is its ability to maintain constant power delivery to all four wheels, eliminating the need for manual engagement and disengagement. This ensures optimal traction and control in all conditions, from slippery roads to rugged terrain.
• Improved Stability: By distributing power evenly across both axles, full-time 4WD systems enhance vehicle stability, particularly when cornering or navigating uneven surfaces. The continuous grip provides greater resistance to skidding and rollovers.
• Enhanced Handling: Full-time 4WD aids in handling capabilities by improving steering response and reducing understeer and oversteer. This enhanced control makes driving more precise and enjoyable, both on and off-road.

Design Considerations for Full-Time 4WD Systems

To withstand the demanding nature of continuous power distribution, full-time 4WD systems feature robust design considerations:

• Transfer Case Capacity: The transfer case, a crucial component in any 4WD system, plays a pivotal role in managing power flow. In full-time 4WD systems, the transfer case is designed to handle higher torque loads and endure prolonged use.
• Driveline Strength: The driveline, comprising the driveshaft and differentials, is reinforced to transmit power effectively to all four wheels without compromising durability.
• Differential Design: Full-time 4WD systems often employ advanced differential designs, such as limited-slip differentials, to optimize traction and power distribution even in challenging conditions.

Applications of Full-Time 4WD

Full-time 4WD systems find their niche in various applications where sustained traction and control are paramount:

• Off-Road Exploration: Adventurers embarking on rugged trails, rocky climbs, and deep mud will appreciate the unwavering grip of full-time 4WD.
• Winter Driving: In slippery winter conditions, full-time 4WD provides exceptional stability and traction, enabling drivers to navigate icy roads and snow-covered trails with confidence.
• Towing and Hauling: When towing heavy loads or traversing steep gradients, full-time 4WD enhances traction and reduces stress on the drivetrain.

Full-time 4WD systems offer a comprehensive solution for enhancing vehicle performance and safety in diverse driving conditions. Their continuous traction, improved stability, and enhanced handling capabilities make them an ideal choice for off-road enthusiasts, winter drivers, and anyone who values unwavering control.

Transfer Case Identification and Removal/Installation

• Provide guidance on accurately identifying the NP205 transfer case based on its location, shape, and identification markings.
• Explain the importance of proper identification for appropriate maintenance and repairs.
• Note that removal and installation of the transfer case require specialized knowledge and tools.
• Recommend referring to the vehicle’s service manual for detailed instructions on removal and installation procedures.

Identifying and Removing/Installing the NP205 Transfer Case

The NP205 transfer case, a crucial component in 4×4 vehicles, plays a vital role in distributing power to the wheels and enhancing off-road performance. Understanding its identification, removal, and installation is essential for proper maintenance and repairs.

Identification

Accurately identifying the NP205 transfer case is necessary for correct maintenance and repairs. This transfer case is typically located between the transmission and axles, and its shape and identification markings can help you distinguish it from other components. Refer to your vehicle’s service manual or consult a qualified mechanic for precise identification.

Removal and Installation

Removing and installing the NP205 transfer case requires specialized knowledge and tools. Attempting these tasks without proper expertise can lead to damage to the transfer case or other drivetrain components. Therefore, it is strongly recommended to refer to your vehicle’s service manual for detailed instructions on the removal and installation procedures. These manuals provide step-by-step guidance, torque specifications, and any special tools or equipment required for the job.

Why Proper Identification and Procedures Matter

Proper identification of the NP205 transfer case ensures that you have the correct parts and instructions for maintenance or repairs. Following the recommended removal and installation procedures helps prevent damage to the transfer case or other components, ensuring optimal performance and safety. By adhering to the guidelines in your vehicle’s service manual, you can confidently address any transfer case issues, ensuring a smooth and reliable driving experience.
